Our shelving and racking systems are designed to maximize vertical space and improve inventory management in warehouses, offices, and storage facilities. From slotted angle shelving for light-duty storage to medium and pallet racking systems for heavy industrial use, each unit offers strength, stability, and modular flexibility. These systems are easy to assemble, customizable, and built to handle high loads with long-lasting durability.

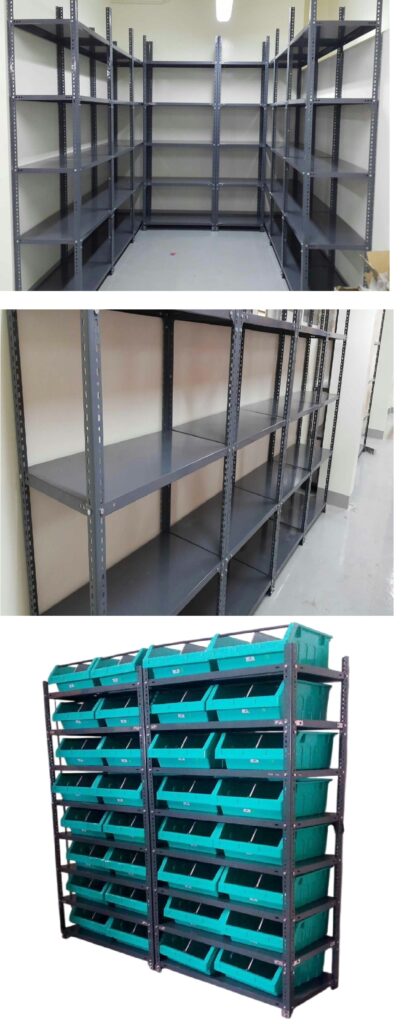

Slotted Angle Shelving System
HI-SPACE, we specialize in providing high-quality
A Slotted Angle Shelving System is a versatile, adjustable, and cost-effective racking solution used for storing light to medium-weight goods in warehouses, offices, retail stores, archives, and workshops. Made from cold-rolled steel angles with uniformly punched slots, it allows easy customization and assembly to fit various storage requirements.
These systems are ideal for organized storage of items like boxes, tools, spare parts, documents, and inventory.
Key Features:
Slotted Angles: Cold-rolled steel angles with uniformly punched holes for easy bolt-together assembly.
Shelves: Made of CRCA steel, plywood, or MDF, adjustable at required heights.
Finish: Powder-coated or painted for corrosion resistance and long service life.
Customizable: Can be configured in various heights, depths, and shelf levels.
Tool-Free Adjustments: Shelf height can be easily changed using nuts and bolts.
Typical Specifications:
Specification | Value / Range |
Material | CR Steel (powder-coated/painted) |
Load Capacity | 50 kg to 200 kg per shelf (standard) |
Shelf Material | Steel, MDF, Plywood |
Upright Height | 5 ft to 12 ft (customizable) |
Depth/Width Options | 300mm to 600mm depth, 600mm to 1200mm width |
No. of Shelves | Typically 4 to 6 levels (adjustable) |
Assembly Type | Bolt & nut-based assembly |
Advantages:
Economical storage solution – great ROI for general-purpose storage.
Highly flexible – easy to reconfigure as per future needs.
Quick to assemble – minimal tools and labor required.
Corrosion-resistant – powder-coated finish extends life.
Compact design – maximizes vertical and floor space.
Applications:
Offices: Document and file storage
Factories & Workshops: Tools, parts, spares
Retail Stores: Inventory and supplies
🗄️ Archives: Book and record keeping
Homes & Garages: Personal storage, tools, utilities
Hospitals/Schools: Medical and institutional supplies
Medium Duty Racking System
HI-SPACE, we specialize in providing high-quality
A Medium Duty Racking System is a modular, boltless storage solution designed to store semi-heavy loads ranging from 100 kg to 500 kg per shelf. It bridges the gap between light-duty shelving and heavy-duty pallet racking, making it ideal for storing cartons, bins, tools, components, and loose materials.
This system is widely used in warehouses, workshops, retail stockrooms, and industries that require quick, efficient, and organized access to medium-weight goods.
Key Features:
Structure: Made of powder-coated steel for high durability and corrosion resistance.
Design: Boltless construction with interlocking beams and upright frames for easy assembly and adjustment.
Shelves: Adjustable shelves made of metal panels, MDF boards, or particle boards.
Load Capacity: Each level supports 100 kg to 500 kg, depending on configuration.
Customizable: Available in various heights, depths, and widths to suit space and product needs.
Typical Specifications:
Specification | Value / Range |
Material | CRCA Steel (powder-coated or painted) |
Load Capacity | 100 kg – 500 kg per shelf |
Height Range | 6 ft – 12 ft (customizable) |
Shelf Levels | 3 to 6 levels per bay |
Shelf Type | Steel panel / MDF / Particle board |
Beam Connection | Boltless, with locking hooks or rivets |
Finish | Powder-coated (rust and chemical resistant) |
Advantages:
Tool-free installation – quick and easy to set up or modify.
Flexible configuration – adjustable shelf levels for varying item sizes.
Durable structure – long-lasting and stable even under semi-heavy load.
Space optimization – makes full use of vertical and horizontal space.
Safe handling – smooth edges and sturdy frames ensure worker safety.

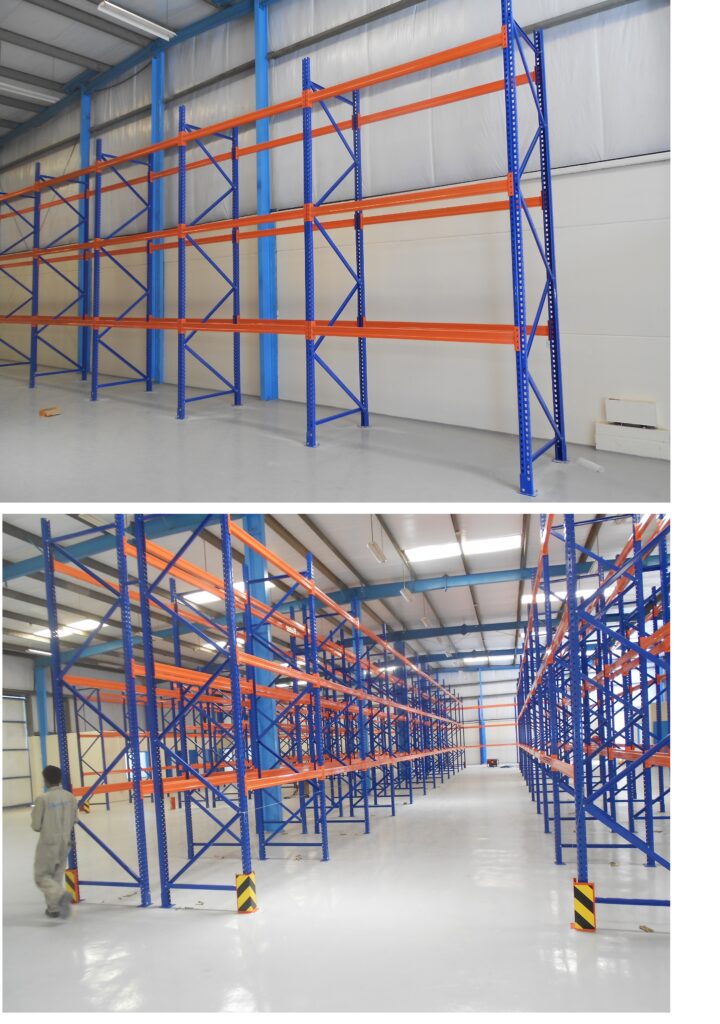

Pallet Racking System
HI-SPACE, we specialize in providing high-quality
A Pallet Racking System is a high-capacity industrial storage system designed to store materials on pallets (skids) in horizontal rows and multiple vertical levels. Engineered for efficient space utilization and easy inventory access, pallet racks are essential in modern warehouses, distribution centers, and manufacturing units.
These systems allow forklift access for loading and unloading, optimizing time, safety, and organization in bulk storage environments.
Key Features:
Structure: Made from high-strength cold-rolled steel, often powder-coated for corrosion resistance.
Load Capacity: Ranges from 500 kg to 3000+ kg per level, depending on design.
Adjustable Beams: Load beams can be repositioned to accommodate pallet height.
Modular Design: Easily expandable or reconfigurable based on storage needs.
Safety Accessories: Includes safety pins, rack guards, row spacers, and pallet stoppers.
Typical Specifications:
Specification | Value / Range |
Material | CR Steel with Powder Coating |
Upright Height | 2 meters – 12 meters |
Beam Length | 1200 mm – 2700 mm |
Load Capacity | 500 kg – 3000 kg per level |
Depth per Bay | 900 mm – 1200 mm |
Levels per Rack | 2 to 6 (customizable) |
Pallet Type Supported | Euro Pallet, Industrial Pallet, Custom |
Types of Pallet Racking Systems:
Selective Pallet Racking – Direct access to each pallet (most common)
Drive-In/Drive-Through Racking – High-density storage, LIFO/FIFO
Double Deep Racking – Increased density with limited access
Push-Back Racking – Gravity-fed storage from rear
Pallet Flow Racking – First-in-first-out (FIFO) dynamic system
Cantilever Racking – For long or irregular items (pipes, timber)
